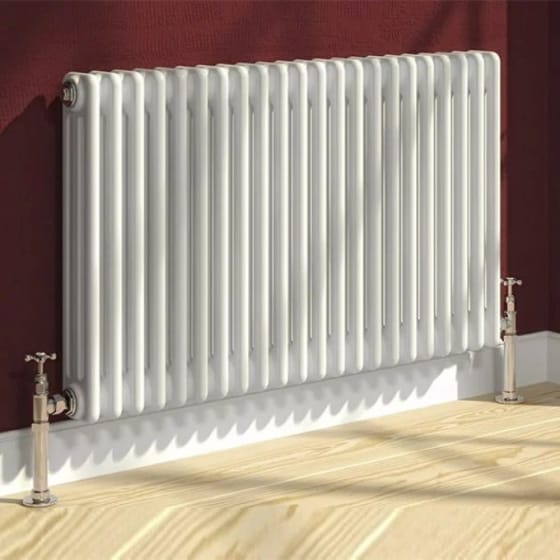

Features specific to : 4/C626
- Columns: 4
- Finish: White
- Height: 600mm
- Width: 1190mm
Specs:
300 x 1010 - 3 Column (4 column):
- Pipe Centres (mm) - 1010
- Wall to Pipe Centres (mm) - 68 (94)
- Wall Distance (mm) - 118 (163)
- Heat Output - 1057 (1363) Watts
300 x 1190 - 3 Column (4 column):
- Pipe Centres (mm) - 1190
- Wall to Pipe Centres (mm) - 68 (94)
- Wall Distance (mm) - 118 (163)
- Heat Output - 1248 (1611) Watts
300 x 1370 - 3 Column (4 column):
- Pipe Centres (mm) - 1370
- Wall to Pipe Centres (mm) - 68 (94)
- Wall Distance (mm) - 118 (163)
- Heat Output - 1440 (1859) Watts
500 x 605 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 605
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 745 (1027) [1309] Watts
500 x 785 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 785
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 945 (1343) [1712] Watts
500 x 1010 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 1010
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 1261 (1445) [2215] Watts
500 x 1190 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 1190
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 1490 (2054) [2618] Watts
500 x 1370 - 3 Column (4 Column):
- Pipe Centres (mm) - 1370
- Wall to Pipe Centres (mm) - 68 (94)
- Wall Distance (mm) - 118 (163)
- Heat Output - 2370 (3021) Watts
600 x 605 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 605
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 886 (1213) [1550] Watts
600 x 785 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 785
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 1159 (1580) [2028] Watts
600 x 1010 - 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 1010
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 1499 (2045) [2624] Watts
600 x 1190- 2 Column (3 Column) [4 Column]:
- Pipe Centres (mm) - 1190
- Wall to Pipe Centres (mm) - 66 (68) [94]
- Wall Distance (mm) - 98 (118) [163]
- Heat Output - 1772 (2417) [3101] Watts
600 x 1370 - 3 Column (4 Column):
- Pipe Centres (mm) - 1370
- Wall to Pipe Centres (mm) - 68 (94)
- Wall Distance (mm) - 118 (163)
- Heat Output - 2788 (3578) Watts
